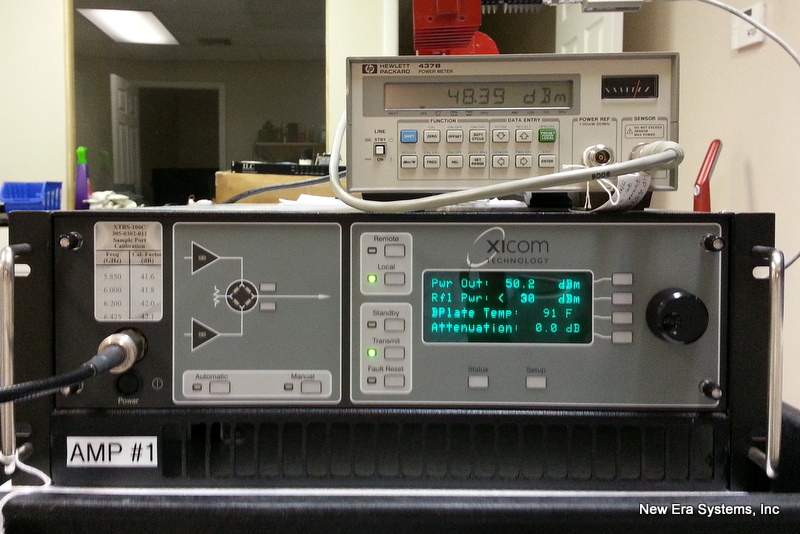

Xicom XTRS 100 Watt C-Band SSPA

photograph of MCL MT5000 KU-Band Amplifier
photograph of MCL MT5000 KU-Band Amplifier

Product Details

100W C-Band SSPA, 5.85 to 6.425 GHz. 4RU high

The XTRS-100C is a highly efficient rack-mountable solid state power amplifier (SSPA) designed for fixed and mobile uplink applications. RF filters, isolators, cooling, and monitor and control (M&C) systems are all self-contained within the package. Rack space is conserved because the amplifiers occupy only 4 rack units (7 inches) of a standard 19 inch rack cabinet. Nominal weight is 85 pounds.

The unit features a menu driven front panel display, RS-232/422/485 serial port and Ethernet interfaces for complete computer control. Forward power, reverse power and temperature, and default parameters are easily monitored on the four line front panel display. Gain control is provided via the front panel or through the remote interfaces.

A high frequency resonant conversion power supply is used that accepts a wide range of prime power (90 to 264 VAC). Power factor correction circuitry is also included which minimizes line current distortion and reduces the required Volt-Amps input. Depending upon user requirements, this high power amplifier can be configured for single thread, redundant, or phase combined configurations.

Compact cabinet mount design ideal for flyaway uplink systems or the tight console of a Satellite News Vehicle.
